OpenEBS VolumeSnapshots for Cloning Crunchy Data PostgreSQL Clusters

Overview

Crunchy Postgres for Kubernetes (PGO) provides a robust Kubernetes-native operator for deploying and managing PostgreSQL clusters. In production environments, cloning PostgreSQL clusters is commonly required for development, testing, reporting, and disaster recovery use cases.

OpenEBS Replicated PV Mayastor enables fast, storage-level snapshot capabilities using copy-on-write (COW) semantics. By integrating OpenEBS VolumeSnapshots with Crunchy Postgres for Kubernetes, PostgreSQL clusters can be cloned efficiently without relying solely on traditional logical restore workflows.

Crunchy Postgres for Kubernetes integrates snapshot capture with traditional pgBackRest backup procedures. Each manual or scheduled backup operation produces a consistent snapshot. With each new snapshot, the previous snapshot is automatically deleted, eliminating the need for manual snapshot management.

This document explains how to configure OpenEBS VolumeSnapshots and clone a Crunchy Data PostgreSQL cluster using snapshot-based restoration.

Environment

The following versions were used for this workflow:

Component	Version
Crunchy PostgreSQL Operator	v5.7
OpenEBS	v4.2.0
Kubernetes	v1.29.6
kubectl mayastor plugin	v2.7.4+0

Prerequisites

Setup OpenEBS

• Install OpenEBS

  Ensure that OpenEBS is installed in your cluster. Refer to the OpenEBS Installation Documentation for step-by-step instructions.

• Install the kubectl-openebs Plugin

  Ensure that kubectl-openebs plugin is installed. Refer to the Kubectl OpenEBS Plugin Documentation to install the plugin.

• Create a StorageClass

1. Create a file named StorageClass.yaml.

StorageClass.yaml

apiVersion: storage.k8s.io/v1

kind: StorageClass

metadata:

name: mayastor-1

parameters:

protocol: nvmf

repl: "1"

thin: "true" # should be thin only

provisioner: io.openebs.csi-mayastor

reclaimPolicy: Delete

volumeBindingMode: WaitForFirstConsumer

allowVolumeExpansion: true

2. Apply the configuration.

kubectl create -f StorageClass.yaml

Create a VolumeSnapshotClass

1. Create a file named VolumeSnapshotClass.yaml.

apiVersion: snapshot.storage.k8s.io/v1

kind: VolumeSnapshotClass

metadata:

name: csi-mayastor-snapshotclass

annotations:

snapshot.storage.kubernetes.io/is-default-class: "true"

driver: io.openebs.csi-mayastor

deletionPolicy: Delete

2. Apply the configuration.

kubectl create -f VolumeSnapshotClass.yaml

Crunchy Postgres for Kubernetes (PGO) Setup

1. Install the Operator using Kustomize. Clone the operator examples repository:

git clone https://github.com/CrunchyData/postgres-operator-examples.git

cd postgres-operator-examples

Refer to the Install Crunchy Postgres for Kubernetes Documentation for alternative installation methods.

2. Create the operator namespace.

kubectl apply -k kustomize/install/namespace

3. Edit the default kustomization file to enable VolumeSnapshots.

vi kustomize/install/default/kustomization.yaml

4. Add the following environment variable.

env:

- name: PGO_FEATURE_GATES

value: "VolumeSnapshots=true"

5. Install the operator.

kubectl apply --server-side -k kustomize/install/default

Deploying a PostgreSQL Cluster

1. Create a namespace for PostgreSQL cluster.

kubectl create ns postgresql

2. Create a file named PostgreSQL_Cluster.yaml.

Cluster.yaml

apiVersion: postgres-operator.crunchydata.com/v1beta1

kind: PostgresCluster

metadata:

name: testpgocluster

namespace: postgresql

spec:

postgresVersion: 17

instances:

- name: instance1

replicas: 2

dataVolumeClaimSpec:

storageClassName: mayastor-1

accessModes:

- "ReadWriteOnce"

resources:

requests:

storage: 4Gi

walVolumeClaimSpec:

storageClassName: mayastor-1

accessModes:

- "ReadWriteOnce"

resources:

requests:

storage: 1Gi

backups:

snapshots:

volumeSnapshotClassName: csi-mayastor-snapshotclass

pgbackrest:

repos:

- name: repo1

volume:

volumeClaimSpec:

storageClassName: mayastor-1

accessModes:

- "ReadWriteOnce"

resources:

requests:

storage: 4Gi

3. Apply the cluster configuration.

kubectl create -f PostgreSQL_Cluster.yaml

kubectl get all -n postgresql

Sample Output

NAME READY STATUS RESTARTS AGE

pod/testpgocluster-backup-pl45-qjpst 0/1 Completed 0 60m

pod/testpgocluster-instance1-8z7s-0 4/4 Running 0 60m

pod/testpgocluster-instance1-jkww-0 4/4 Running 0 60m

pod/testpgocluster-repo-host-0 2/2 Running 0 60m

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

service/testpgocluster-ha ClusterIP 10.99.50.188 <none> 5432/TCP 60m

service/testpgocluster-ha-config ClusterIP None <none> <none> 60m

service/testpgocluster-pods ClusterIP None <none> <none> 60m

service/testpgocluster-primary ClusterIP None <none> 5432/TCP 60m

service/testpgocluster-replicas ClusterIP 10.98.140.213 <none> 5432/TCP 60m

NAME READY AGE

statefulset.apps/testpgocluster-instance1-8z7s 1/1 60m

statefulset.apps/testpgocluster-instance1-jkww 1/1 60m

statefulset.apps/testpgocluster-repo-host 1/1 60m

NAME COMPLETIONS DURATION AGE

job.batch/testpgocluster-backup-pl45 1/1 118s 60m

After deployment, a backup job runs automatically, generating a consistent snapshot.

4. Check if a volumesnapshot was created successfully.

kubectl get volumesnapshot -n postgresql

Sample Output

NAME READYTOUSE SOURCEPVC SOURCESNAPSHOTCONTENT RESTORESIZE SNAPSHOTCLASS SNAPSHOTCONTENT CREATIONTIME AGE

testpgocluster-pgdata-snapshot-c5hc true testpgocluster-snapshot snapcontent-c2ed0472-d0c0-43fe-ab25-98137be9a0d0 4Gi csi-mayastor-snapshotclass snapcontent-c2ed0472-d0c0-43fe-ab25-98137be9a0d0 49s 63s

Insert Sample Data into the PostgreSQL Cluster

1. Identify the primary pod.

kubectl get pods -n postgresql --selector=postgres-operator.crunchydata.com/role=master

2. Connect to the pod.

kubectl exec -it <primary-pod-name> -n postgresql -- psql

3. Insert sample data.

-- Create a demo database:

create database demodb;

-- List the Database:

\l demodb

-- Connect to the database:

\c demodb

-- Insert Data in demodb

-- Create a table named 'my_table' with some sample columns.

CREATE TABLE my_table (

id SERIAL PRIMARY KEY,

name VARCHAR(255),

value INTEGER,

created_at TIMESTAMP DEFAULT NOW()

);

-- Insert 100 records into the table.

INSERT INTO my_table (name, value)

SELECT

'Record ' || generate_series(1, 100), -- Generate names like 'Record 1', 'Record 2', etc.

(random() * 1000)::INTEGER -- Generate random integer values.

FROM generate_series(1, 100);

-- Optionally, verify the inserted records.

SELECT * FROM my_table;

SELECT COUNT(*) FROM my_table;

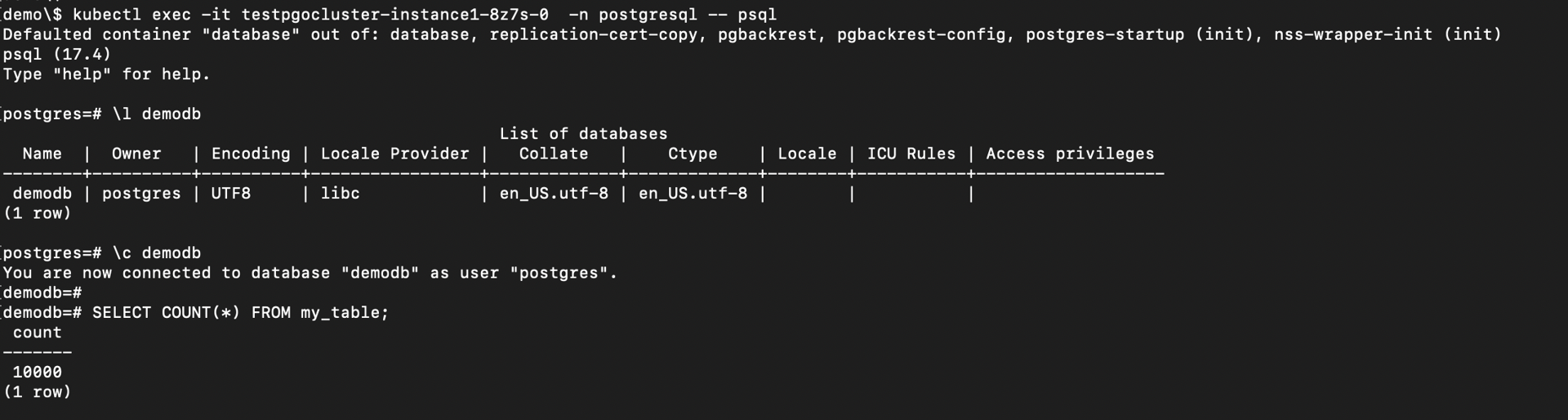

Record Count Before Backup

Triggering a Manual Backup

1. Add the manual backup specification to the PostgresCluster CR.

manual:

repoName: repo1

options:

- --type=full

2. Trigger the backup using annotation.

kubectl annotate -n postgresql postgrescluster testpgocluster postgres-operator.crunchydata.com/pgbackrest-backup="$(date)"

For subsequent backups:

kubectl annotate -n postgresql postgrescluster testpgocluster --overwrite postgres-operator.crunchydata.com/pgbackrest-backup="$(date)"

Upon successful completion:

• A new snapshot is created
• The previous snapshot is automatically removed

3. Check if a volumesnapshot was created successfully.

kubectl get volumesnapshot -n postgresql

Sample Output

NAME READYTOUSE SOURCEPVC SOURCESNAPSHOTCONTENT RESTORESIZE SNAPSHOTCLASS SNAPSHOTCONTENT CREATIONTIME AGE

testpgocluster-pgdata-snapshot-xrlv true testpgocluster-snapshot snapcontent-d94fd9e7-eeca-4e9a-ac3d-13487b6cd3fe 4Gi csi-mayastor-snapshotclass snapcontent-d94fd9e7-eeca-4e9a-ac3d-13487b6cd3fe 37s 42s

Cloning the PostgreSQL Cluster

Crunchy Postgres for Kubernetes will automatically look for the source cluster’s snapshot. If a snapshot is found, a new persistent volume will be populated with the data in the snapshot.

1. Create a file named cluster_clone.yaml.

apiVersion: postgres-operator.crunchydata.com/v1beta1

kind: PostgresCluster

metadata:

name: restoredtestpgocluster

spec:

dataSource:

postgresCluster:

clusterName: testpgocluster

repoName: repo1

postgresVersion: 17

instances:

- name: instance1

replicas: 2

dataVolumeClaimSpec:

storageClassName: mayastor-1

accessModes:

- "ReadWriteOnce"

resources:

requests:

storage: 4Gi

walVolumeClaimSpec:

storageClassName: mayastor-1

accessModes:

- "ReadWriteOnce"

resources:

requests:

storage: 1Gi

backups:

snapshots:

volumeSnapshotClassName: csi-mayastor-snapshotclass

pgbackrest:

repos:

- name: repo1

volume:

volumeClaimSpec:

storageClassName: mayastor-1

accessModes:

- "ReadWriteOnce"

resources:

requests:

storage: 4Gi

2. Apply the cloned cluster configuration.

kubectl create -f cluster_clone.yaml -n postgresql

The cloned cluster is created in the same namespace as the source cluster.

Verifying Cloned Data

1. Connect to the restored PostgreSQL cluster.

kubectl exec -it <restored-primary-pod> -n postgresql -- psql

2. Verify the data.

\c demodb

SELECT COUNT(*) FROM my_table;

Sample Output

[demo]$ kubectl get pods -n postgresql --selector=postgres-operator.crunchydata.com/role=master

NAME READY STATUS RESTARTS AGE

restoredtestpgocluster-instance1-74cb-0 4/4 Running 0 105s

testpgocluster-instance1-8z7s-0 4/4 Running 0 163m

[demo]$ kubectl exec -it restoredtestpgocluster-instance1-74cb-0 -n postgresql -- psql

Defaulted container "database" out of: database, replication-cert-copy, pgbackrest, pgbackrest-config, postgres-startup (init), nss-wrapper-init (init)

psql (17.4)

Type "help" for help.

postgres=#

postgres=#

postgres=# \c demodb

You are now connected to database "demodb" as user "postgres".

demodb=# SELECT COUNT(*) FROM my_table;

count

-------

10000

(1 row)

The record count should match the source cluster, confirming successful cloning using OpenEBS VolumeSnapshots.
