In this blog, more of a tutorial, I will walk you through the steps to install K3OS and setup OpenEBS, a CNCF project, and leading Open Source Container Attached Storage solution for Kubernetes Stateful Workloads.
Setting up K3OS in vSphere

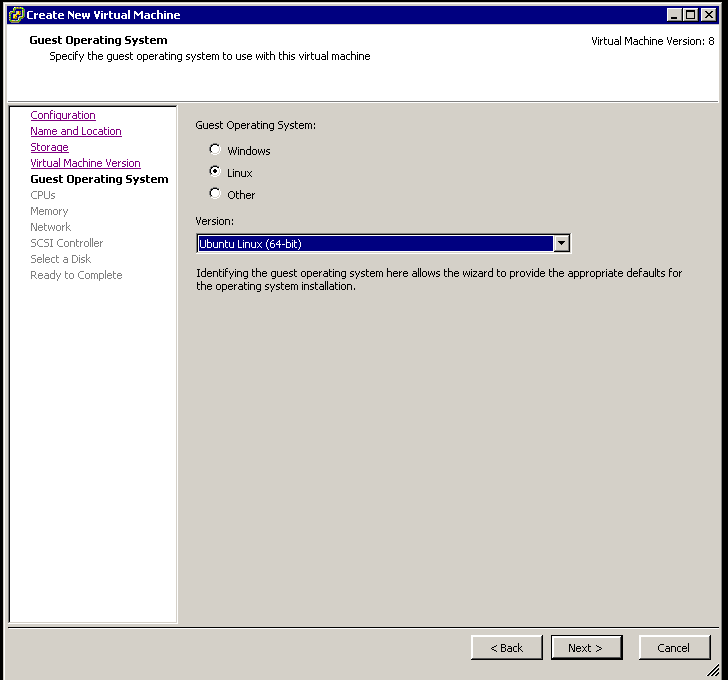

K3OS kernel is forked from Ubuntu-18.04 LTS, and its userspace binaries are from alpine. So, you need to select Ubuntu Linux (64 bit) as the guest operating system while creating a virtual machine.
Select guest operating system
Download the latest K3OS iso file(currently v0.9.0) from its GitHub release page. Attach the iso file into a virtual machine and start it with the live installation option, as shown below.

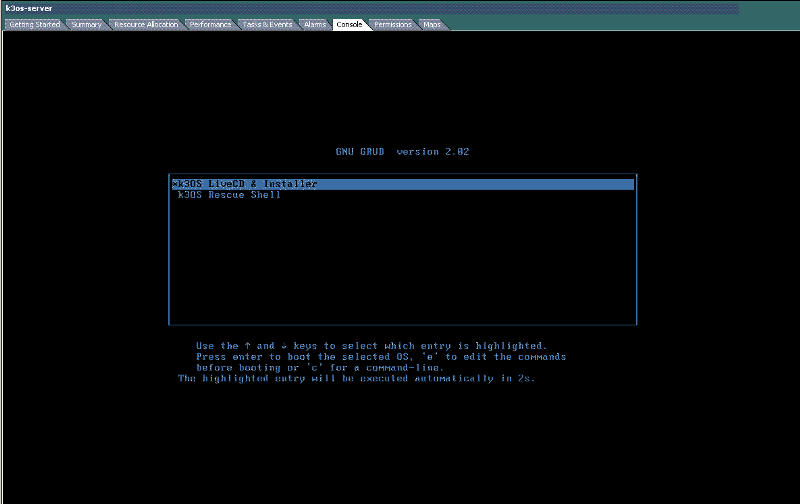

Select the option K3OS LiveCD & install and boot the operating system.

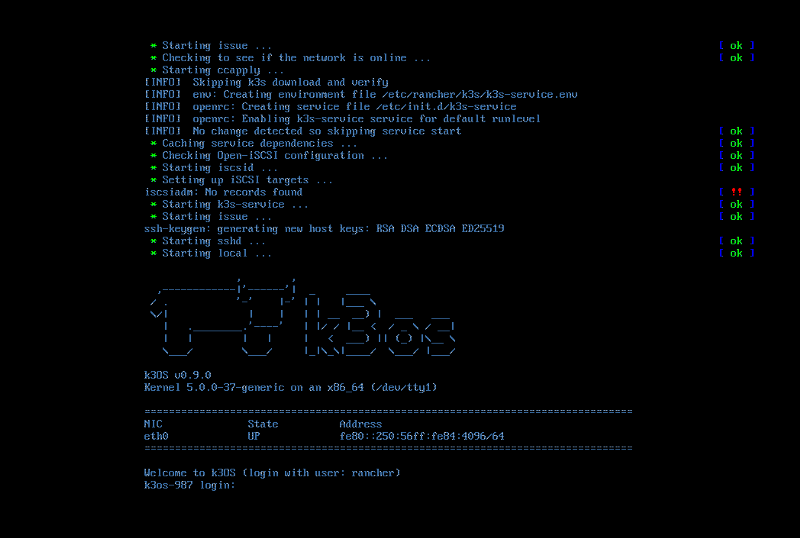

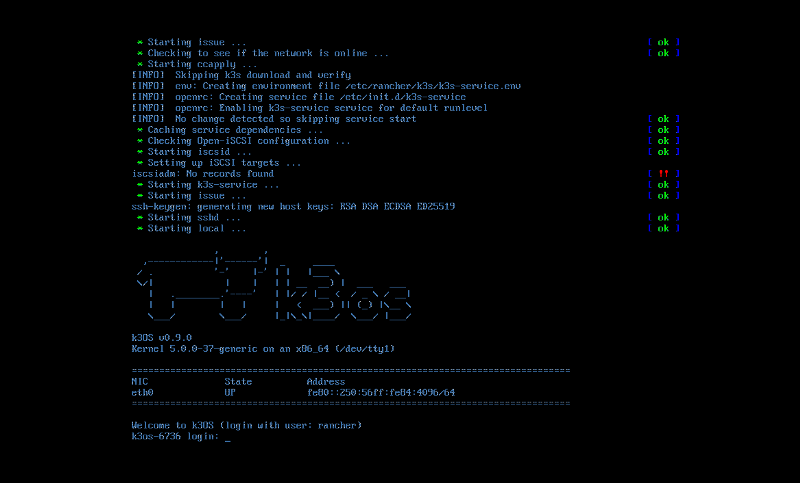

After booting up successfully, you will be landed in a login prompt. The default user in K3OS is rancher. You can login as rancher user without any password.
After performing a live install, You need to install the Operating system into a disk and can configure the machine either as a server(Master) or an agent(worker). This can be performed by executing the command sudo k3os install.

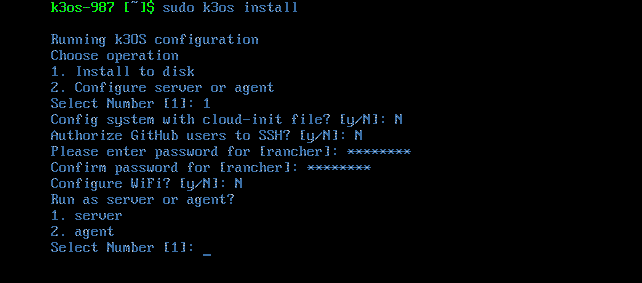

Select option 1. Install to disk to install K3OS into the disk. In the preceding questions, set up a new password for rancher user for enabling ssh communication to the server.
Installing into disk
Installing into disk

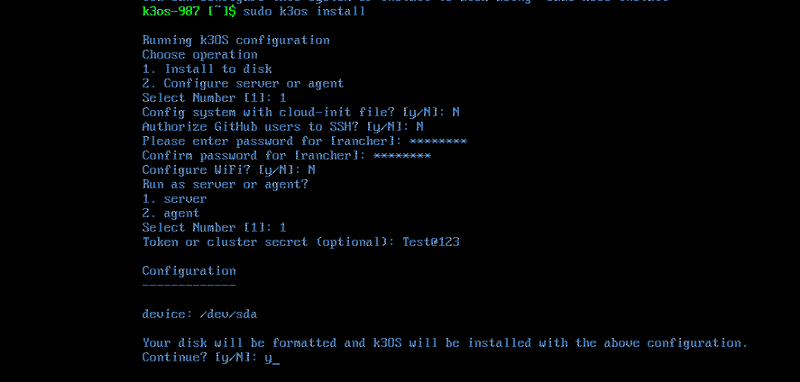

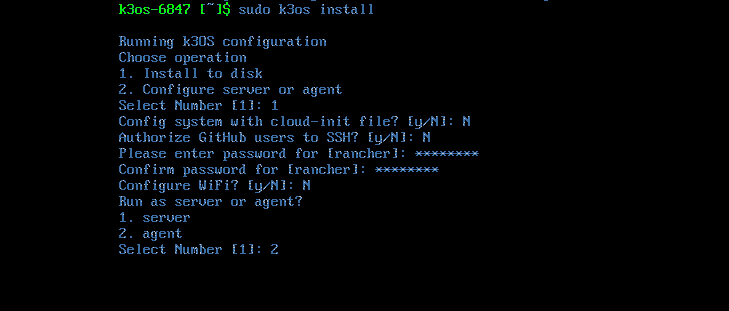

You need to select either server or agent to install the relevant components in the machine. Select 1.server to deploy K3s server components. You can set up a token or cluster secret that could be used while joining K3s agents to the server.
After completing the installation, a screen similar to the following one will be displayed.
Thus, the K3s server can be configured successfully. In case if DHCP is not configured, you need to assign an IP address and other networking details using connmanctl utility. Login into the server as rancher user and enter the password configured in the previous step.
Let us find the connman network service bound to the eth0 device by executing the below command.
sudo connmanctl services
The above command will list the services below.
After identifying the service, you can assign the IP address, netmask, gateway, and DNS server through the following command.
sudo connmanctl config <ethernet service> --ipv4 manual <IP Address> <Netmask> <gateway> --nameservers <DNS Address>
After executing the above command, ensure if the network is configured correctlly through ifconfig command.
Reboot the machine after setting up networking.
Install K3s agent
In K3s nomenclature, Kubernetes workers are called as agents. While installing k3os into a disk, you need to select the option 2. agent to configure K3s agent in the machine.
After selecting Agent, you need to provide the URL of the server to which the agent has to be configured. The URL of the k3s server could be formed in the following way.
https://<K3s Server IP Address>:6443
After entering the URL, you need to provide the cluster secret, which was configured during server installation.
After providing all the above inputs, initiate the agent deployment.
Configure networking in the same way as performed above for server and reboot the machine.
After rebooting the agent machine, check the cluster status in the server as follows.
k3os-1374 [~]$ kubectl get nodes NAME STATUS ROLES AGE VERSION k3os-1374 Ready master 10m v1.17.2+k3s1 k3os-15360 Ready <none> 10m v1.17.2+k3s1 k3os-1091 Ready <none> 10m v1.17.2+k3s1
Check if all the cluster components are configured successfully and all the pods are running successfully by executing the below command.
k3os-1374 [~]$ kubectl get pods -n kube-system NAME READY STATUS RESTARTS AGE helm-install-traefik-nmjvj 0/1 Completed 0 3d svclb-traefik-gp9ff 2/2 Running 1 2d23h svclb-traefik-qgdlx 2/2 Running 0 2d23h local-path-provisioner-58fb86bdfd-wkdtm 1/1 Running 1 3d metrics-server-6d684c7b5-mrxsr 1/1 Running 0 3d svclb-traefik-c4v7l 2/2 Running 0 3d coredns-d798c9dd-td5tr 1/1 Running 0 3d traefik-6787cddb4b-n57jz 1/1 Running 0 3d
cStor was not supported in K3OS till k3os-v0.8.0 due to this issue. This issue has been addressed in v0.9.0 by adding udev support.
k3os-1374 [~]$ kubectl apply -f openebs-operator-1.7.0.yaml namespace/openebs created serviceaccount/openebs-maya-operator created clusterrole.rbac.authorization.k8s.io/openebs-maya-operator created clusterrolebinding.rbac.authorization.k8s.io/openebs-maya-operator created deployment.apps/maya-apiserver created service/maya-apiserver-service created deployment.apps/openebs-provisioner created deployment.apps/openebs-snapshot-operator created configmap/openebs-ndm-config created daemonset.apps/openebs-ndm created deployment.apps/openebs-ndm-operator created deployment.apps/openebs-admission-server created deployment.apps/openebs-localpv-provisioner created
Check if all the OpenEBS components are running successfully.
k3os-1374 [~]$ kubectl get pods -n openebs NAME READY STATUS RESTARTS AGE openebs-admission-server-f67f77588-8kl78 1/1 Running 0 65s openebs-provisioner-7b8c68bf44-7bjw8 1/1 Running 0 66s openebs-ndm-qp26v 1/1 Running 0 66s openebs-ndm-84zb4 1/1 Running 0 66s openebs-ndm-dzghs 1/1 Running 0 66s openebs-localpv-provisioner-5c87bbd974-55486 1/1 Running 0 65s openebs-ndm-operator-5fccfb7976-dvhj6 1/1 Running 0 66s openebs-snapshot-operator-6c4c64d4bc-qxdwd 2/2 Running 0 66s maya-apiserver-84785d7fbd-ck7sh 1/1 Running 0 66s
OpenEBS cStor engine requires external disks to be attached to the agents which group to form cStor Pools.
The disks or block devices are managed by the component called Node disk manager, shortly called as NDM. After attaching the disks to agent machines, check the block devices by executing the following command.
k3os-1374 [~]$ kubectl get blockdevices -n openebs NAME NODENAME SIZE CLAIMSTATE STATUS AGE blockdevice-30a3eb18f5b9e2d470de45e39f1036b0 k3os-15360 17179869184 Unclaimed Active 1h blockdevice-86fc964305abe8970fc1508538a61dbc k3os-1374 17179869184 Unclaimed Active 1h blockdevice-b8735721689d5843bca10e7028f60a4e k3os-1091 17179869184 Unclaimed Active 1h
In this case, one block device has been attached to each K3s agent machine. Let us populate these block devices in the below pool creation manifest under spec.blockDevices and create the pool.
apiVersion: openebs.io/v1alpha1 kind: StoragePoolClaim metadata: name: cstor-disk-pool annotations: cas.openebs.io/config: | - name: PoolResourceRequests value: |- memory: 2Gi - name: PoolResourceLimits value: |- memory: 4Gi spec: name: cstor-disk-pool type: disk poolSpec: poolType: striped blockDevices: blockDeviceList: - blockdevice-30a3eb18f5b9e2d470de45e39f1036b0 - blockdevice-86fc964305abe8970fc1508538a61dbc - blockdevice-b8735721689d5843bca10e7028f60a4e
After applying the above definition, check if the pools are created successfully by executing the following command.
k3os-1374 [~]$ kubectl get csp NAME ALLOCATED FREE CAPACITY STATUS TYPE AGE cstor-disk-pool-rgy3 270K 15.9G 15.9G Healthy striped 2m3s cstor-disk-pool-gij4 270K 15.9G 15.9G Healthy striped 2m2s cstor-disk-pool-09l1 270K 15.9G 15.9G Healthy striped 2m2s
All the pool instances should be healthy and each instance runs a pod which can be found by executing the following command.
k3os-1374 [~]$ kubectl get pods -n openebs -l app=cstor-pool NAME READY STATUS RESTARTS AGE cstor-disk-pool-rgy3-57f965b48c-srz2x 3/3 Running 0 8m33s cstor-disk-pool-gij4-77bb4b8f44-s6k89 3/3 Running 0 8m33s cstor-disk-pool-09l1-56d444996b-m698h 3/3 Running 0 8m33s
After creating cStor pool, we can proceed to create volume. For illustration, let us deploy a busybox with cstor volume as its persistent storage. Before creating a pool, we need to create a storage class specifying the storagePoolClaim that was created in the above step as follows:
apiVersion: storage.k8s.io/v1 kind: StorageClass metadata: name: openebs-cstor annotations: openebs.io/cas-type: cstor cas.openebs.io/config: | - name: StoragePoolClaim value: "cstor-disk-pool" - name: ReplicaCount value: "3" provisioner: openebs.io/provisioner-iscsi
Populate storagePoolClaim and ReplicaCount as per your requirement in the above definition and create storage class. You have to use this storage class while creating PVC.
kind: PersistentVolumeClaim apiVersion: v1 metadata: name: openebs-pvc spec: storageClassName: openebs-cstor accessModes: - ReadWriteOnce resources: requests: storage: 10Gi --- apiVersion: v1 kind: Service metadata: labels: name: busybox name: busybox spec: clusterIP: None selector: app: busybox --- apiVersion: apps/v1 kind: Deployment metadata: name: busybox labels: app: busybox spec: selector: matchLabels: app: busybox template: metadata: labels: app: busybox spec: containers: - name: app-busybox imagePullPolicy: IfNotPresent image: busybox command: ["/bin/sh"] args: ["-c", "while true; do sleep 10;done"] env: volumeMounts: - name: data-vol mountPath: /busybox volumes: - name: data-vol persistentVolumeClaim: claimName: openebs-pvc
After updating the storage class in the above manifest, let us deploy the busybox application by applying the above definition.
Check if the PVC is created and mounted successfully on the application pod by checking their status.
k3os-1374 [~]$ kubectl get pvc NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE openebs-pvc Bound pvc-6cd2b30a-49ed-4605-b1e0-dd23c45e548d 10Gi RWO openebs-cstor 4m35s k3os-1374 [~]$ kubectl get pods NAME READY STATUS RESTARTS AGE busybox-748fb77c75-9lwzz 1/1 Running 0 4m42s
As we specified ReplicaCount as 3 in the storage class, 3 volume replicas will be created which can be found by executing the following command.
k3os-1374 [~]$ kubectl get cvr -n openebs NAME USED ALLOCATED STATUS AGE pvc-6cd2b30a-49ed-4605-b1e0-dd23c45e548d-cstor-disk-pool-09l1 7.95M 116K Healthy 6m37s pvc-6cd2b30a-49ed-4605-b1e0-dd23c45e548d-cstor-disk-pool-rgy3 7.95M 116K Healthy 6m37s pvc-6cd2b30a-49ed-4605-b1e0-dd23c45e548d-cstor-disk-pool-gij4 7.95M 116K Healthy 6m37s
Thus, the cStor engine can be used to provision persistent volume for the workloads in K3s.
